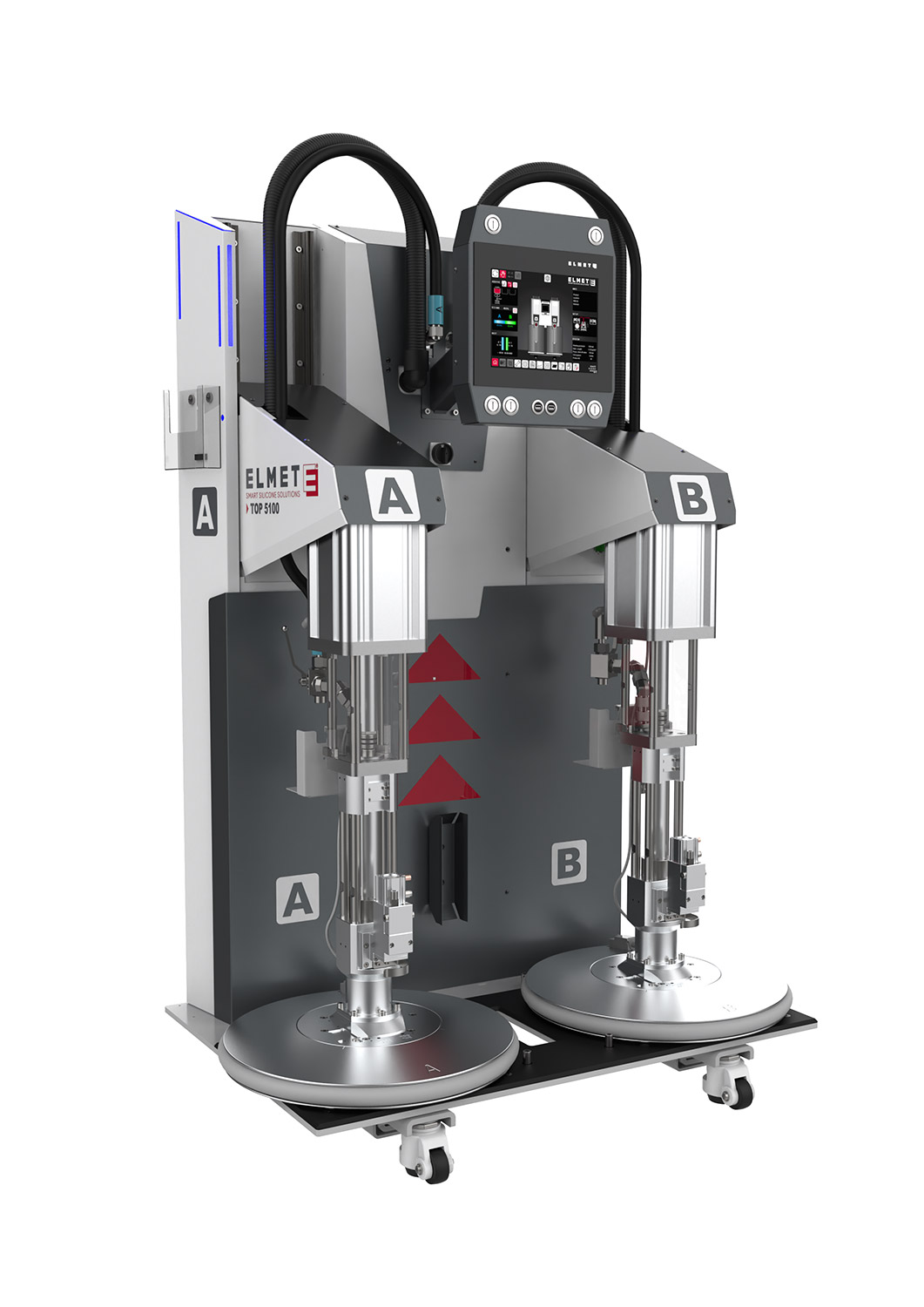

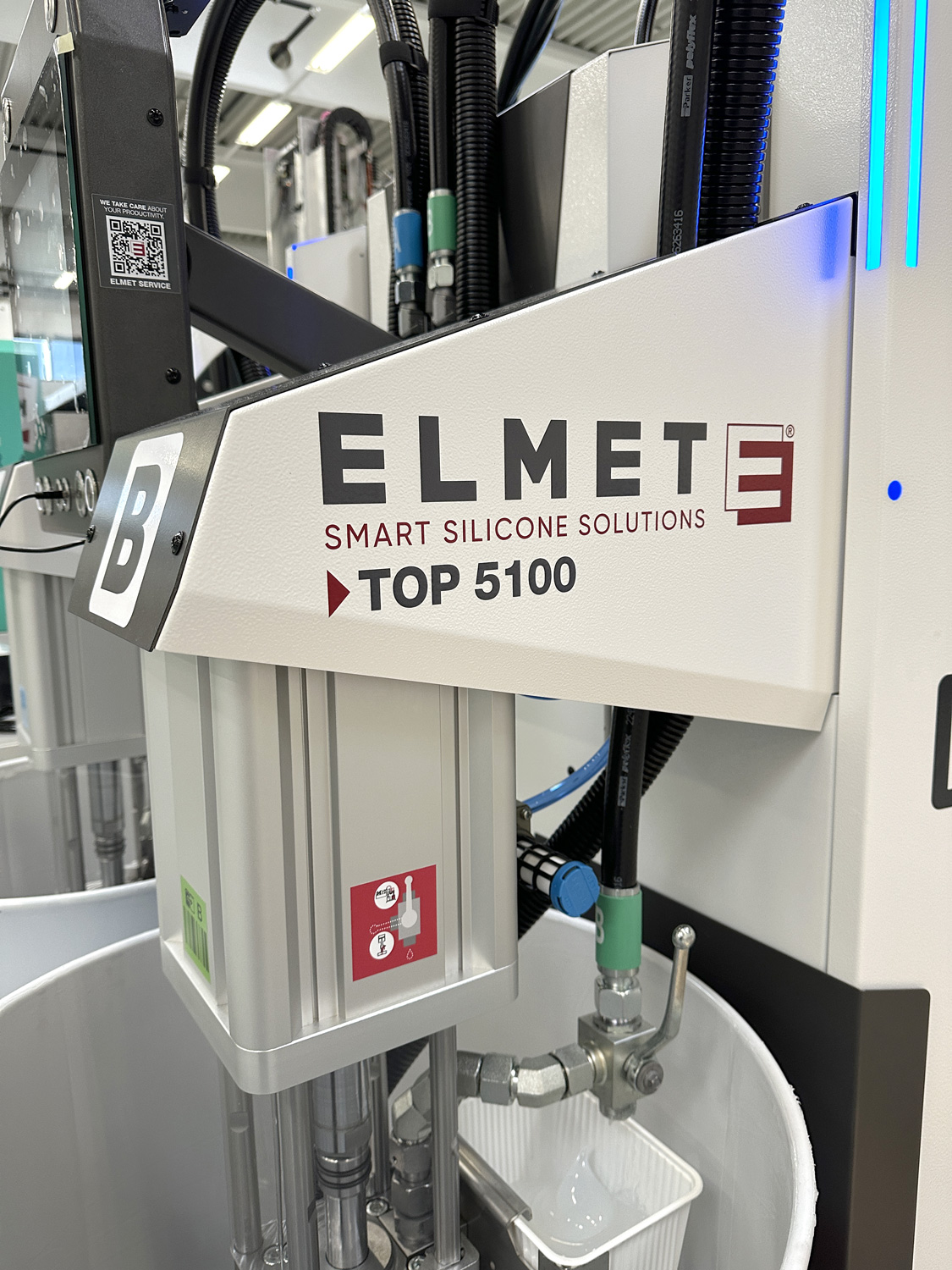

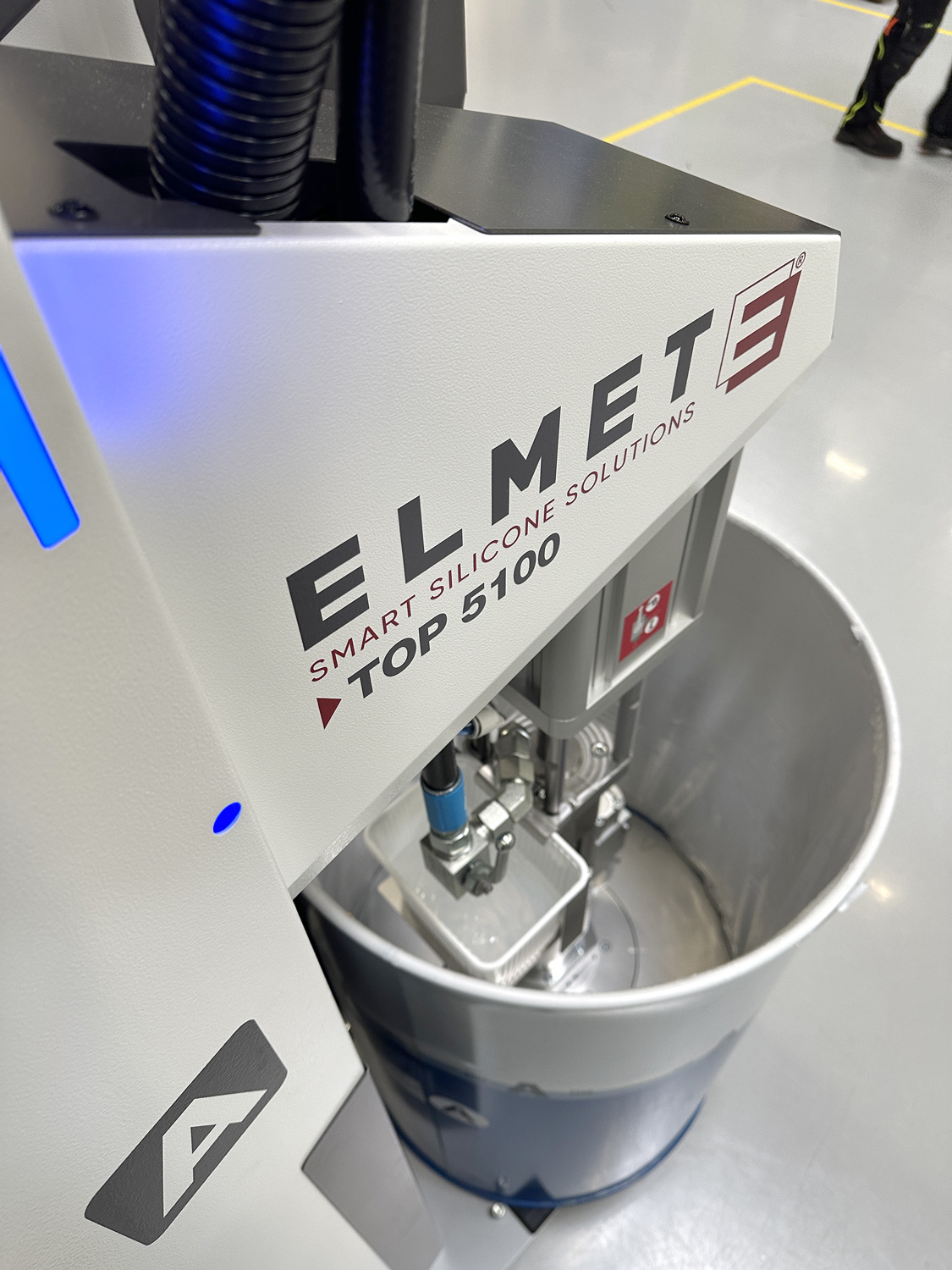

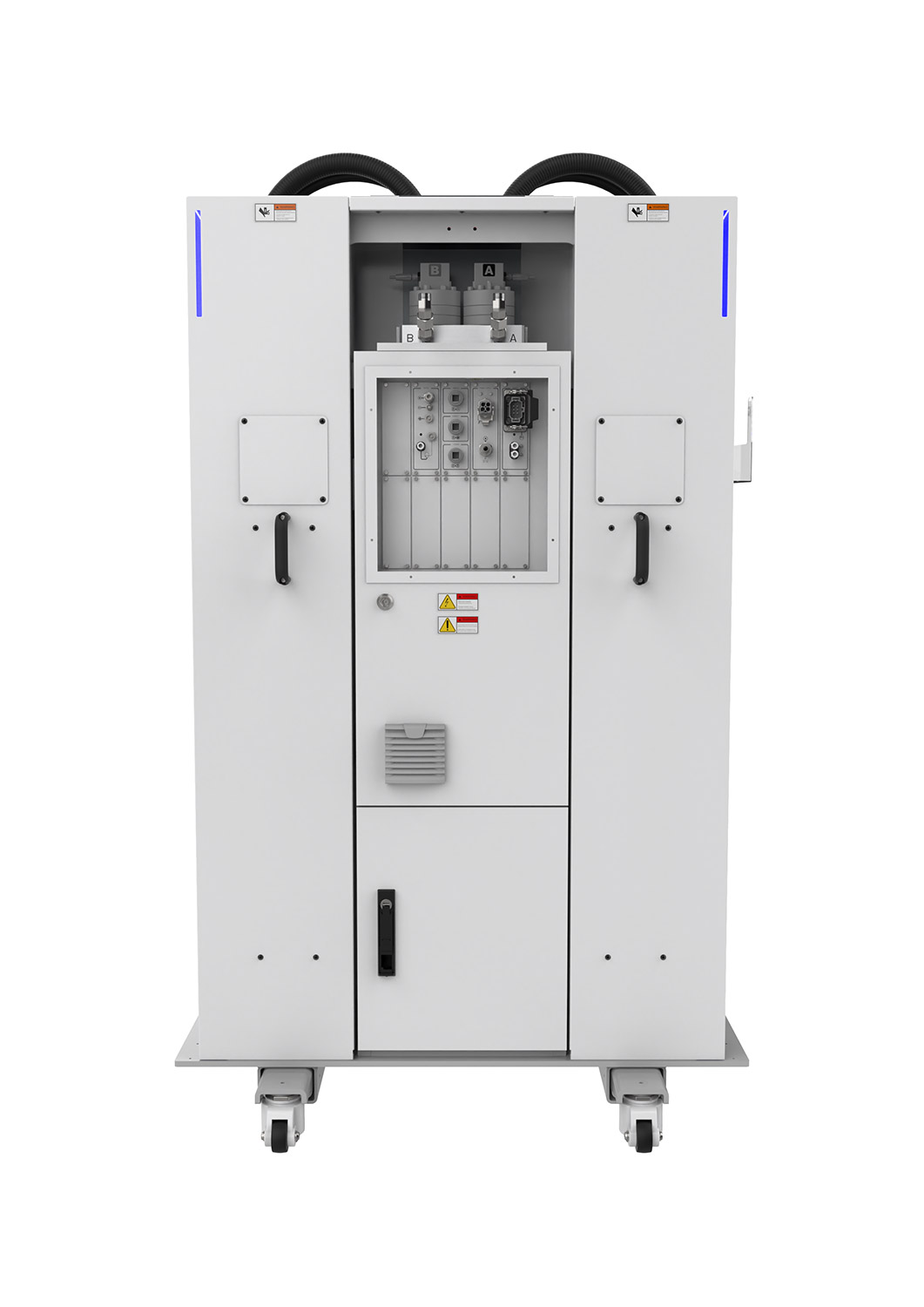

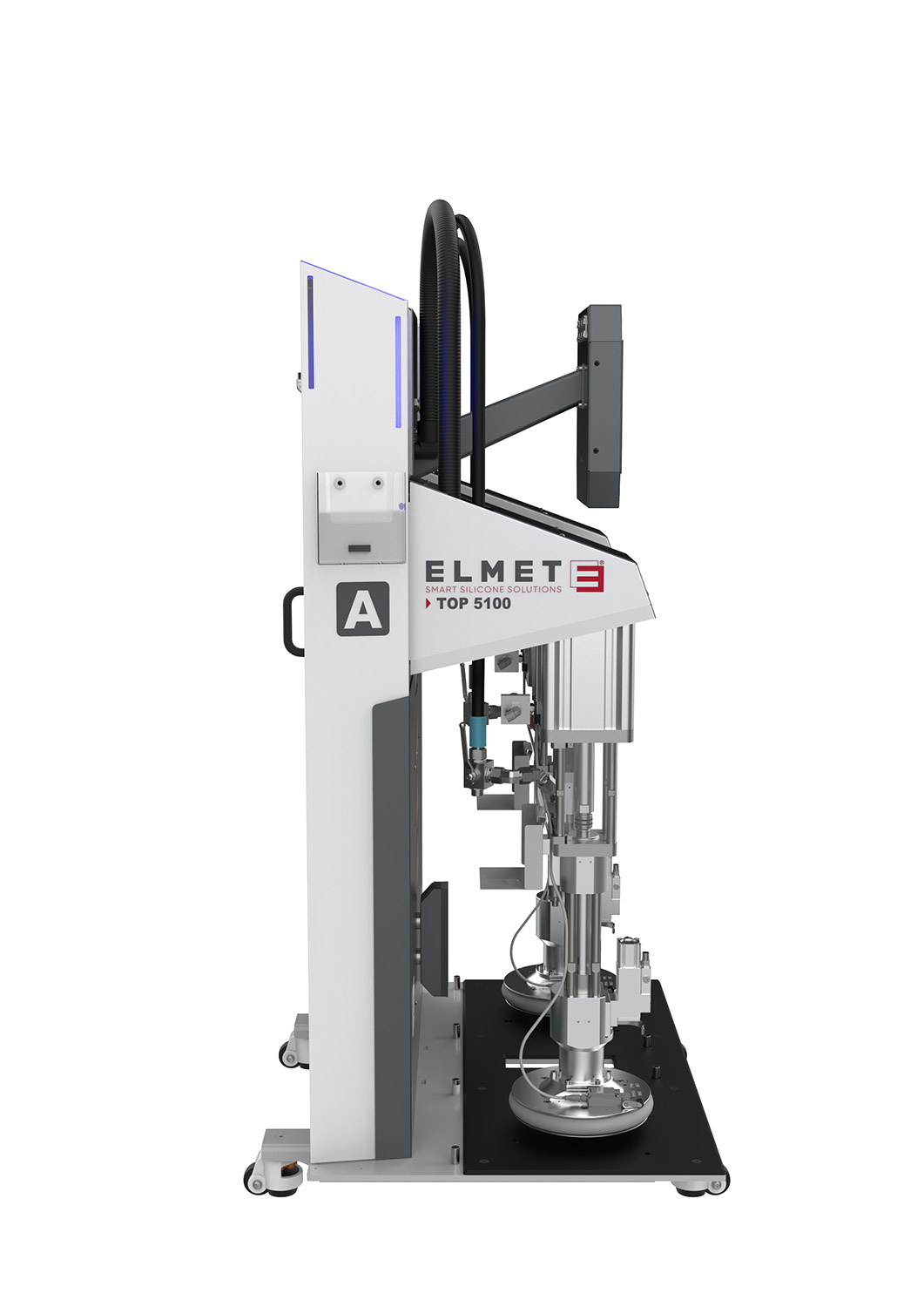

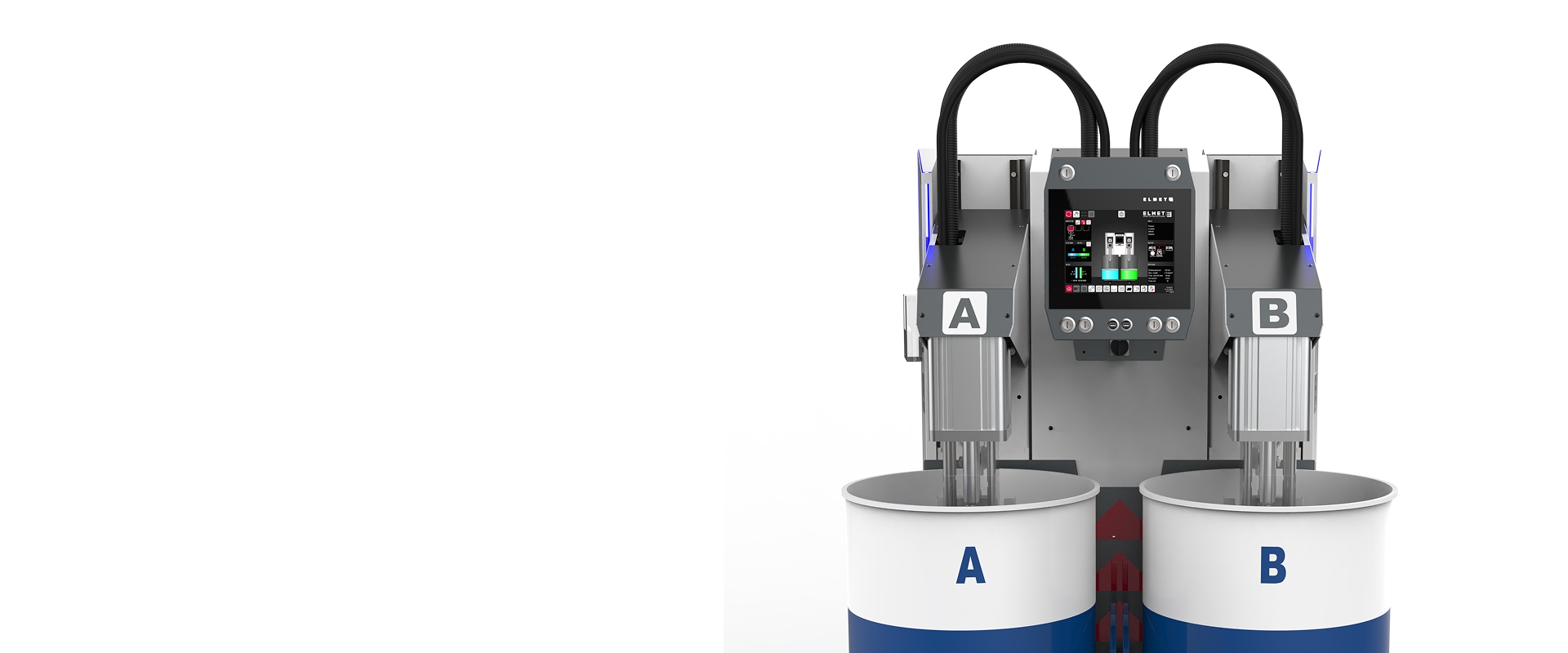

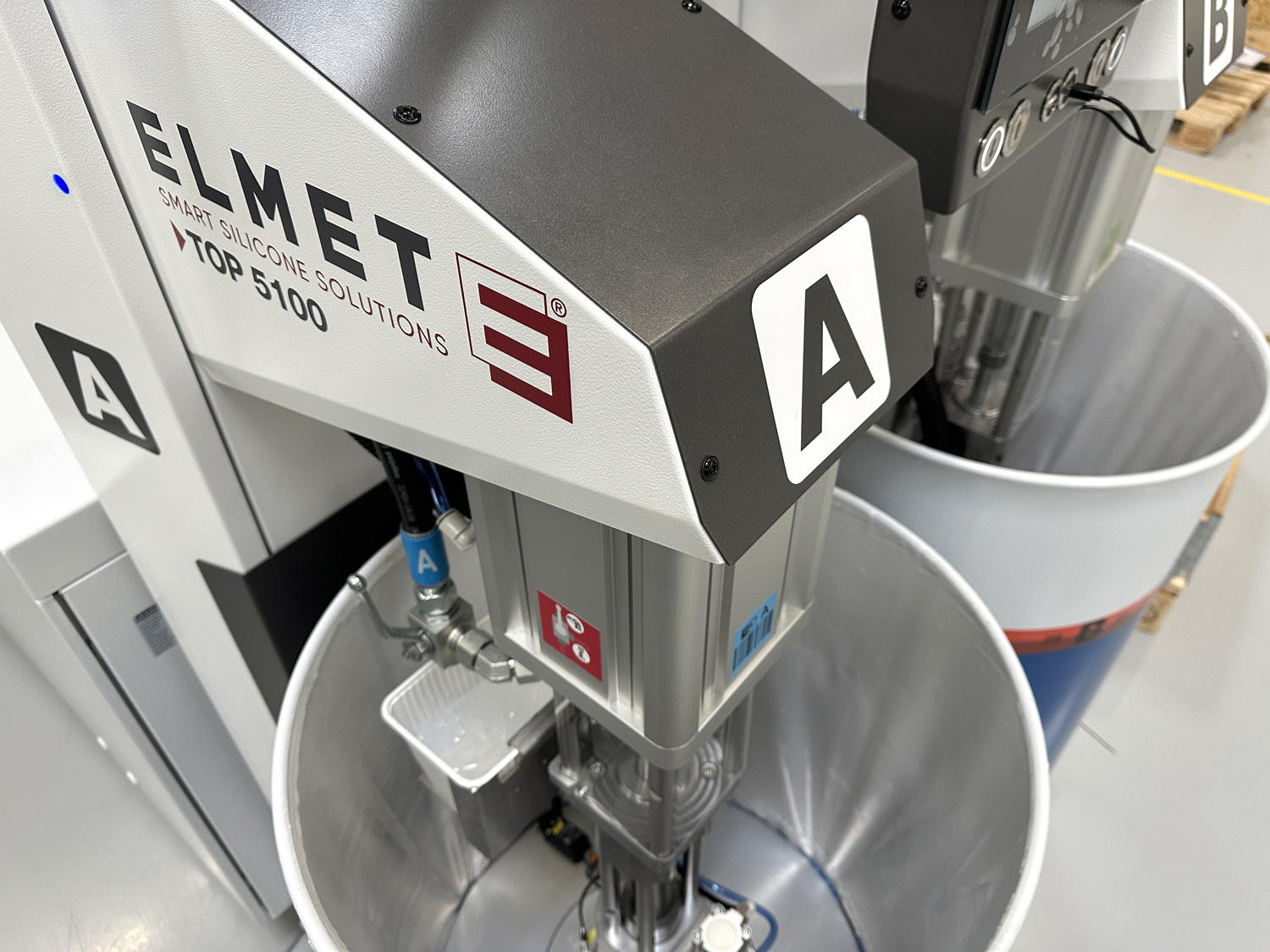

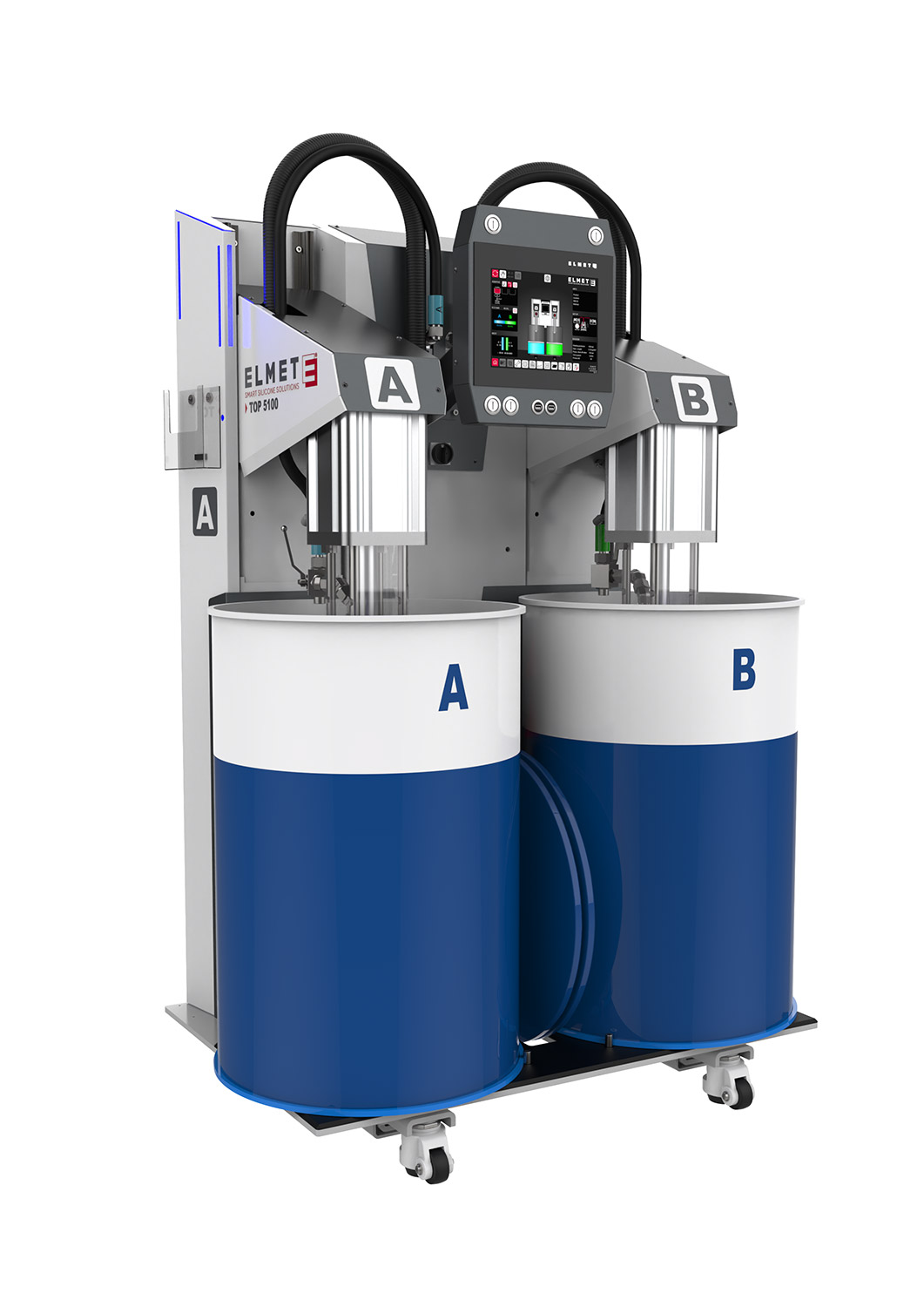

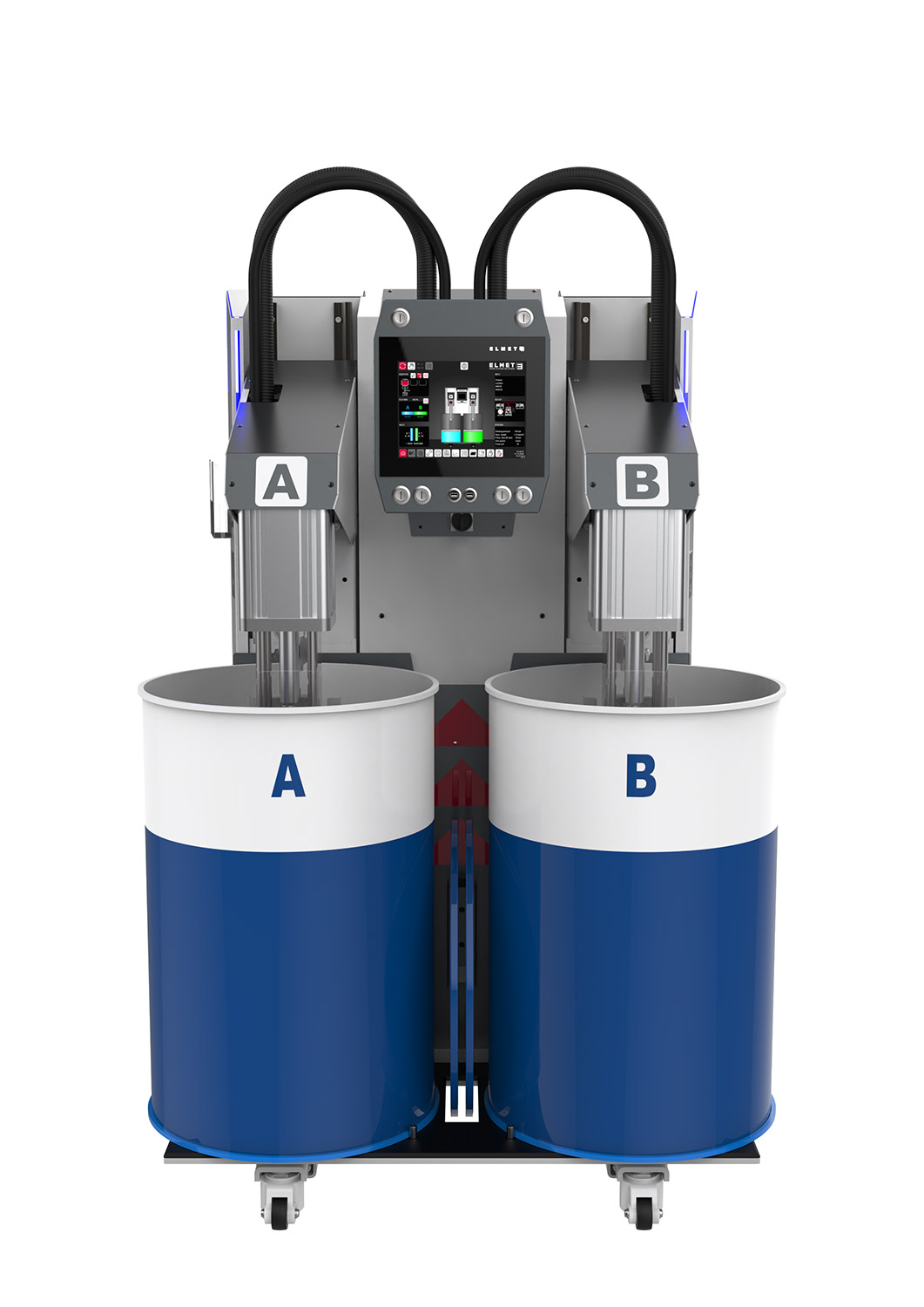

TOP 5100

The allrounder for versatile use

The high-performance dosing system for versatile use

Our TOP 5100 is the ideal choice for anyone who needs more than just a basic model, but not the full scope of features of a high-end system. As a true allrounder, it combines performance, flexibility, and cost-effectiveness in compelling style.

With its high process stability, dosing precision, and wide-ranging compatibility for various LSR applications, the TOP 5100 is perfectly suited for series production environments with varying requirements. It boasts extension options, high-resolution volume counters as well as well-thought-out standard features, and can be custom-adapted to your specific processes.

Whether for standard tasks or more complex projects: Our TOP 5100 strikes the perfect balance between functional diversity and investment costs.

Top-level dosing

High performance

  • Delivery rate: > 5 liters/minute*
  • Max. pump pressure: 230 bar

Stable & precise

  • Stable pressure curve during dosing thanks to material pressure limiter
  • High-precision volume counters ensure exact mixing ratios and stellar process stability. 3.9 µl/Imp (256,000 Imp/L)

Cost effectiveness

  • Material utilization per container of up to 99.6 %
  • High-quality components = service life of 20+ years
  • Low maintenance costs

Energy efficiency

  • Power consumption: approx. 50 Wh
  • Minimal idling losses, no pressure loss

Versatile in use

  • Broadest viscosity range in the market: 0.001 to 3000 Pas** (> 16,000 Pas***)

Safety

  • Safest system in the market
    (EN ISO 13849-1)
  • Air detection
  • UL and CE-compliant (FDA optional)

User friendly

  • Communication protocol OPC UA (optional)
  • Intuitive and very easy to operate
  • Very simple guided drum change

* measured with silicone oil at ẏ=10 1/s η = 2.7 Pas (A+B components) | ** ẏ=10/s | *** ẏ=0.2/s

The safest dosing system in the market

Safety is ELMET's top priority.
With our dosing systems, we are not only setting new standards in terms of energy efficiency, performance, and process stability, but also in the area of machine safety. Our systems meet the highest standards and have been successfully tested and inspected by TÜV SÜD.
This means we can offer you the demonstrably safest dosing system in the market.

Technical data

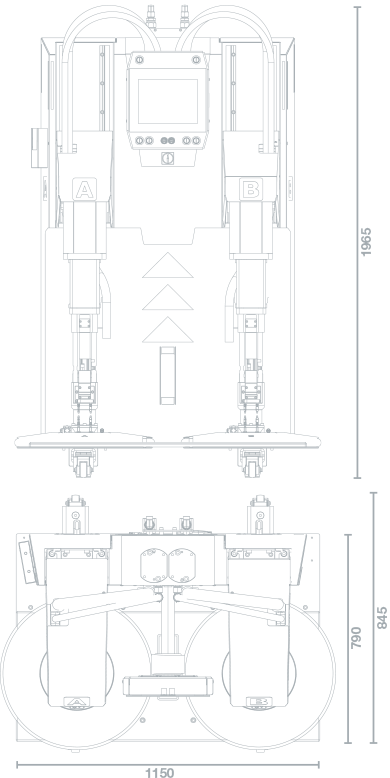

Dimensions L/W/H (mm):
1150 x 790 x 1965 (2445)
Drum sizes:
200/ 20 liters
Drum change:
3 sides (180°) in 2 minutes, automatically guided
Usable materials [Pas]**:
Pump unit M: 0.001 to 3000
Delivery rate per component @ 2.7 Pas:
2350 cm³ / min
Maximum delivery pressure:
Pump unit M: 230 bar / 3336 psi
Power supply
100 - 264 VAC, 4 A
Air supply:
6 bar – 1000 NL / min (1/2“)
Additive lines
6 max.
Mixing elements:
1 standard (expandable)
Volume counters:
Yes
Certifications:
CE, UL, RoHS (FDA optional)
Eco-Mix (simultaneous drum emptying):
Standard
Process documentation (USB):
Standard

Options

Fix-Mix

(freely selectable mixing ratio)

Shore-Mix

LSR Select

FDA compatibility

Barcode drum detection

Drum lifting device

Roles

Customized paint work

Process documentation (OPC UA)

Euromap 82.3

Remote monitoring via VNC

Premium Connectivity

Simplex

(1 dosing system on 2 injection molding machines)

Tandem

(2 dosing systems in alternating operation)

Try It First

Try out our dosing systems free of charge and without obligations

  • Free 4-week trial period
  • Flexible returning options
  • Available extension options

Save energy & reduce CO2 emissions

Forget the myth that pneumatic dosing systems always consume more energy than electric ones. ELMET technology proves the opposite – and sets new standards:
Up to 50% less energy consumption compared to purely electrically operated pumps – that means:

Lower CO2 emissions
Lower operating costs
Greater sustainability

LEARN MORE

Would you like to learn more about our dosing systems?

Our experts will assist you in making your selection and show you the optimal solution for efficiency and precision.

Please select an option.
Lets talk about Smart Silicone Solutions
Please select an option.
Please enter your first name.
Please enter your surname.
Please enter your company name.
Please enter your country.
Please enter your e-mail address.
Please enter your phone number.
Please
You have to accept the data protection notice.

Dosing equipment

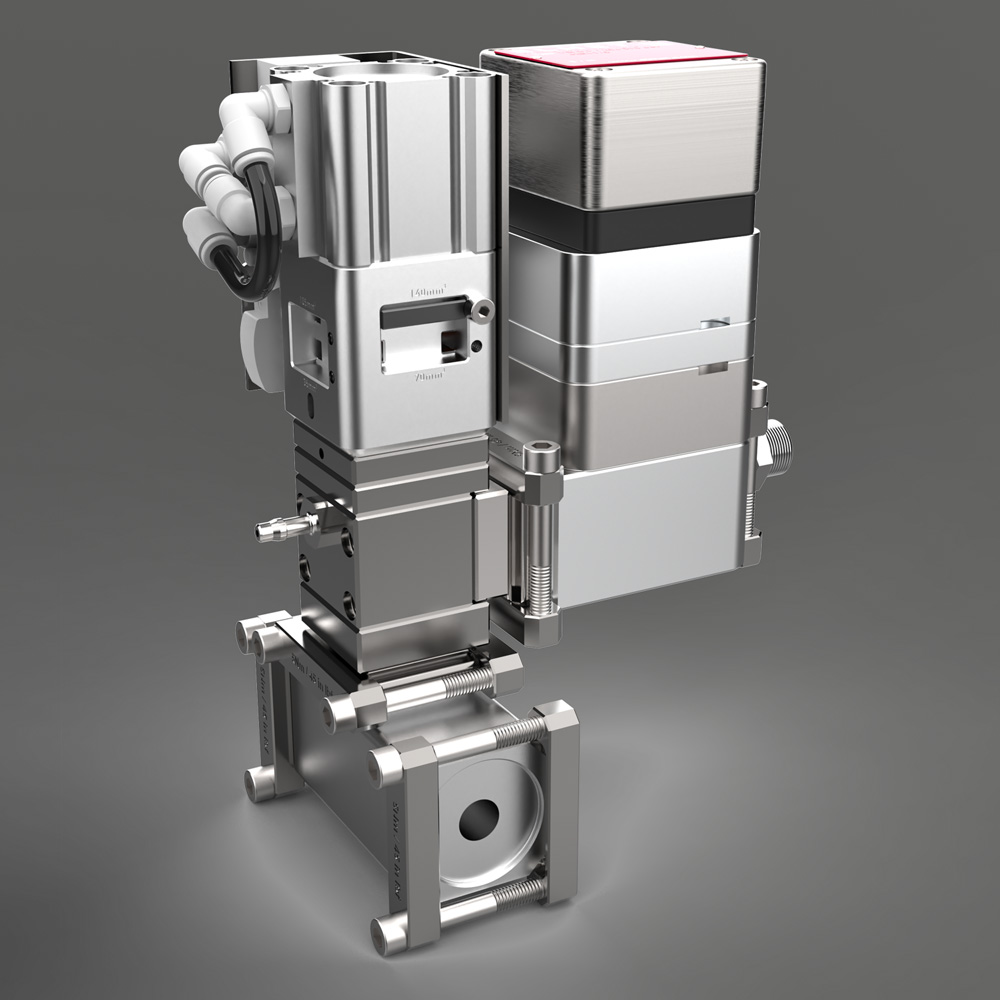

Additive lines

Additives: flexible and precise

Read more

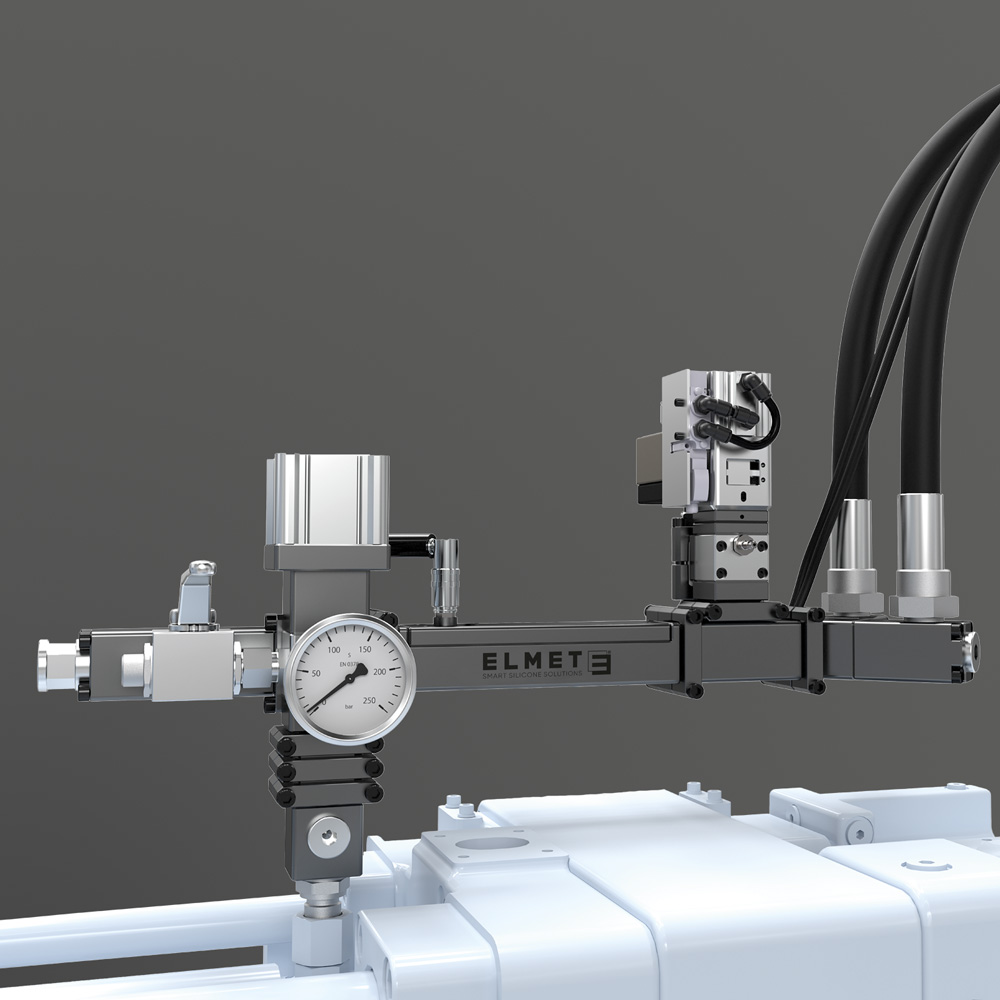

Processing unit

40D12 - for the perfect mix

Read more

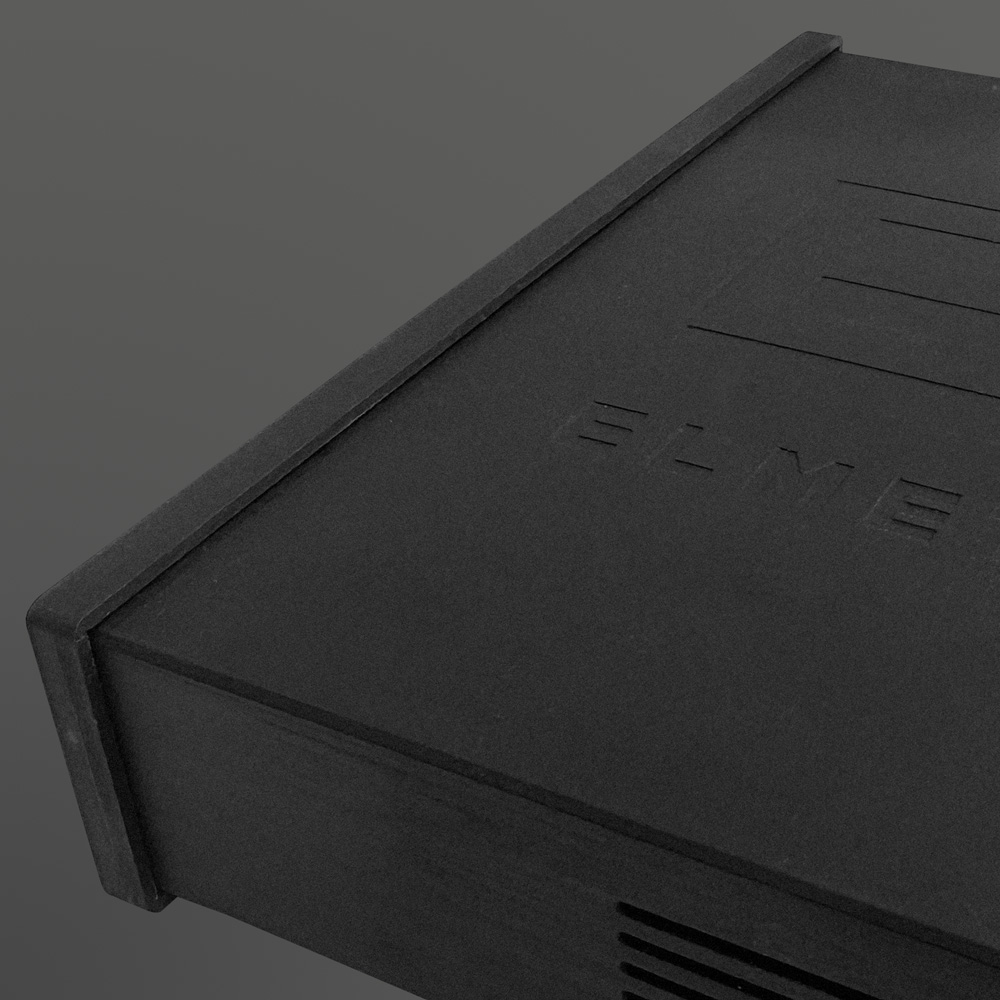

SMARTsupport Hub
